NV6-18D3RD/R1-IDU

DC series slim duct

Počisti

Nordis VRF (Variable Refrigerant Flow) systems are advanced air conditioning solutions designed to deliver precise comfort, superior efficiency, and exceptional flexibility for any type of building.
DC Slim Duct is an ultra-thin, quiet, and energy-efficient ducted air conditioning unit with constant air volume, high ESP, and optional health-enhancing filters.

Monterji
Pokličite nas
+370 37 373248
Vprašajte
Stopite v stik z nami

Opis

Main features

Advantages of the model:

Recommended places – Office, conference room, hotel room, restaurant, living room, etc.

Fan motor automatically adjusts speed according to real time wind resistance. To provide stable air volume to rooms.

The minimum height of the body is only 200mm, saving space. The drain pump can lift the condensing water up to 1200mm.

The duct can be equipped with silver ion and activated carbon health filter.

Standard float switch, when the condensate pump is faulty or the drainpipe is blocked, timely warning, prevent the water tray inside the machine overflow.

DC motor, energy-saving and silent operation. The lowest noise is 20 dB(A).

ESP up to 80Pa supports longer air duct and fits with more installation scenario.

Seven-speed adjustment delivers powerful cooling and heating for a quiet, comfortable environment.

Remote controller

  • Cooling / dehumidification / fan / heating / automatic and other operation settings
  • Temperature / fan speed setting
  • Sleep/timer/swing/turbo and other functions

The appearance of the remote control may differ from that shown in the picture.

Wired controller

  • Cooling / dehumidification / fan / heating / automatic and other operation settings
  • Temperature / fan speed setting
  • Sleep/timer/swing/turbo and other function settings
  • Monitoring function, big LCD screen displays the operation status of the unit
  • Remote control signal available

The appearance of the remote control may differ from that shown in the picture.

Central controller

  • 7 inches and colorful screen display, beautiful appearance, touch screen, easy operation.
  • A variety of combinations, single or multiple machines can be operated simultaneously.
  • Up to 16 systems and 1280 indoor units can be connected, easy to set indoor units parameters.
  • It also has the schedule setting and historical fault query function.

Wifi module

Connect the WiFi module with the air-conditioning system, and then match the WiFi module with the wireless router through the mobile phone APP, and the air-conditioning equipment is networked, so that the cell phone APP can realize remote control of the air-conditioning system from a different place and enjoy the convenience interconnection.

Protocol Converter

A Protocol Converter in a VRF system is a device that enables communication between the VRF air conditioning units and the building management system (BMS). It converts the VRF system’s communication protocol into standard formats such as Modbus allowing centralized monitoring, control, and integration of the HVAC system within the overall building automation network.

AHU Connection KIT

Solution to extend NØRDIS VRF technology to third party Air Handling Units.
• Easy for connecting to third party AHU
• Setting capacity by DIP
• Remoter or wire controller can be chosen
• 3 steps fan motor speed, Low/Mid/High
• Error status: No error or error occurred

Certified by Eurovent

This certification guarantees that NØRDIS VRF systems deliver true, tested performance, offering confidence to installers, engineers, and end users alike. It also demonstrates that NØRDIS products fully comply with European energy efficiency and environmental standards, ensuring sustainable comfort solutions for modern buildings.

Documents

Here you can download all the most important documents related to this product and its use.

Technical data
pdf

Discover

  •

    Outdoor Units
    25,2 kW
    28,0 kW
    33,5 kW
    40,0 kW
    45,0 kW
    50,4 kW
    56,0 kW
    61,5 kW
    68,0 kW
    73,0 kW
    78,5 kW
    85,0 kW
    90,0 kW
    Model: NV6-252-T3/R1-ODU
    Hladilna moč 25,2 kW
    Ogrevalna moč 25,2 kW
    Zvočna moč 56/83 dB(A)
    Neto dimenzije (Š×G×V) 925x845x1780 mm
    Model: NV6-280-T3/R1-ODU
    Hladilna moč 28 kW
    Ogrevalna moč 28 kW
    Zvočna moč 57/84 dB(A)
    Neto dimenzije (Š×G×V) 925x845x1780 mm
    Model: NV6-335-T3/R1-ODU
    Hladilna moč 33,5 kW
    Ogrevalna moč 33,5 kW
    Zvočna moč 58/86 dB(A)
    Neto dimenzije (Š×G×V) 925x845x1780 mm
    Model: NV6-400-T3/R1-ODU
    Hladilna moč 40 kW
    Ogrevalna moč 40 kW
    Zvočna moč 59/90 dB(A)
    Neto dimenzije (Š×G×V) 1340x845x1780 mm
    Model: NV6-450-T3/R1-ODU
    Hladilna moč 45 kW
    Ogrevalna moč 45 kW
    Zvočna moč 60/93 dB(A)
    Neto dimenzije (Š×G×V) 1340x845x1780 mm
    Model: NV6-504-T3/R1-ODU
    Hladilna moč 50,4 kW
    Ogrevalna moč 50,4 kW
    Zvočna moč 61/93 dB(A)
    Neto dimenzije (Š×G×V) 1340x845x1780 mm
    Model: NV6-560-T3/R1-ODU
    Hladilna moč 56 kW
    Ogrevalna moč 56 kW
    Zvočna moč 61/93 dB(A)
    Neto dimenzije (Š×G×V) 1340x845x1780 mm
    Model: NV6-615-T3/R1-ODU
    Hladilna moč 61,5 kW
    Ogrevalna moč 61,5 kW
    Zvočna moč 62/93 dB(A)
    Neto dimenzije (Š×G×V) 1340x845x1780 mm
    Model: NV6-680-T3/R1-ODU
    Hladilna moč 68 kW
    Ogrevalna moč 68 kW
    Zvočna moč 63/93 dB(A)
    Neto dimenzije (Š×G×V) 1760x845x1780 mm
    Model: NV6-730-T3/R1-ODU
    Hladilna moč 73 kW
    Ogrevalna moč 73 kW
    Zvočna moč 64/93 dB(A)
    Neto dimenzije (Š×G×V) 1760x845x1780 mm
    Model: NV6-785-T3/R1-ODU
    Hladilna moč 78,5 kW
    Ogrevalna moč 78,5 kW
    Zvočna moč 66/93 dB(A)
    Neto dimenzije (Š×G×V) 1900x845x1780 mm
    Model: NV6-850-T3/R1-ODU
    Hladilna moč 85 kW
    Ogrevalna moč 85 kW
    Zvočna moč 66/93 dB(A)
    Neto dimenzije (Š×G×V) 1900x845x1780 mm
    Model: NV6-900-T3/R1-ODU
    Hladilna moč 90 kW
    Ogrevalna moč 90 kW
    Zvočna moč 66/93 dB(A)
    Neto dimenzije (Š×G×V) 1900x845x1780 mm
    Ta izdelek ima več različic. Možnosti lahko izberete na strani izdelka
    Oglejte si izdelek

  • Full DC Inverter MINI VRF Units
    12,1 kW
    14,0 kW
    15,5 kW
    18,0 kW
    22,4 kW
    25,2 kW
    28,0 kW
    Model: NV6-120F1/R1-ODU
    Hladilna moč 12.1 kW
    Ogrevalna moč 12.1 kW
    Raven zvočne moči 52/72 dB(A)
    Neto dimenzije (Š×G×V) 1010x410x850 mm
    Model: NV6-140F1/R1-ODU
    Hladilna moč 14 kW
    Ogrevalna moč 14 kW
    Raven zvočne moči 53/73 dB(A)
    Neto dimenzije (Š×G×V) 1010x410x850 mm
    Model: NV6-160F1/R1-ODU
    Hladilna moč 15,5 kW
    Ogrevalna moč 16 kW
    Raven zvočne moči 54/74 dB(A)
    Neto dimenzije (Š×G×V) 1010x410x850 mm
    Model: NV6-180F3/R1-ODU
    Hladilna moč 18 kW
    Ogrevalna moč 18 kW
    Raven zvočne moči 55/79 dB(A)
    Neto dimenzije (Š×G×V) 1120×400×1560 mm
    Model: NV6-224F3/R1-ODU
    Hladilna moč 22,4 kW
    Ogrevalna moč 22,4 kW
    Raven zvočne moči 60/79 dB(A)
    Neto dimenzije (Š×G×V) 1120×400×1560 mm
    Model: NV6-252F3/R1-ODU
    Hladilna moč 25,2 kW
    Ogrevalna moč 25,2 kW
    Raven zvočne moči 60/82 dB(A)
    Neto dimenzije (Š×G×V) 1120×400×1560 mm
    Model: NV6-280F3/R1-ODU
    Hladilna moč 28 kW
    Ogrevalna moč 28 kW
    Raven zvočne moči 61/82 dB(A)
    Neto dimenzije (Š×G×V) 1120×400×1560 mm
    Ta izdelek ima več različic. Možnosti lahko izberete na strani izdelka
    Oglejte si izdelek

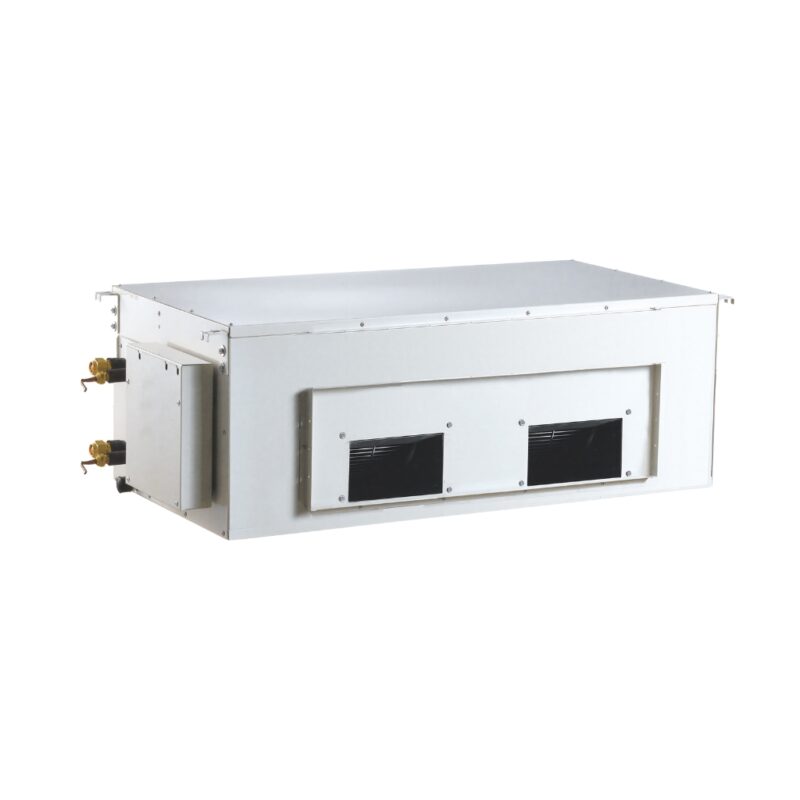

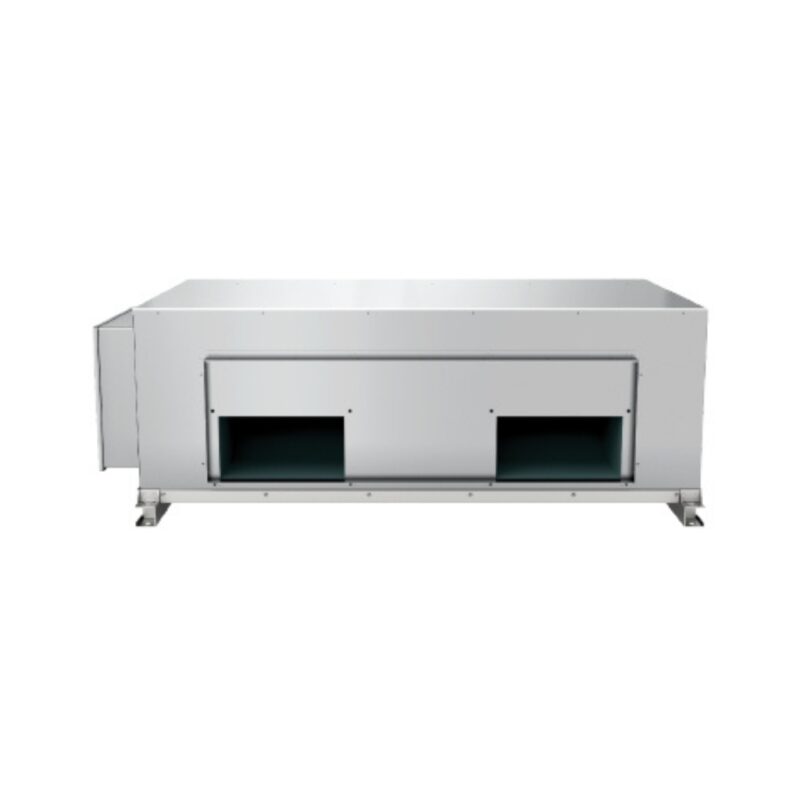

  • High static pressure duct
