NV6-252-T3/R1-ODU

Outdoor Units

Počisti

Nordis VRF (Variable Refrigerant Flow) systems are advanced air conditioning solutions designed to deliver precise comfort, superior efficiency, and exceptional flexibility for any type of building.
NØRDIS VRF Systems Outdoor unit module has only 4 basic structures with the same height, which simplifies the design process and improves the flexibility of the system. These units allow the freedom to connect the piping in multiple directions, such as front side, left side, right side and back side , making installation easier.

Monterji
Pokličite nas
+370 37 373248
Vprašajte
Stopite v stik z nami

Opis

Main features

Advantages of the model:

High Efficiency and Powerful Performance​

Reliable Operation with Multi-Level Protection​

Flexible Installation and System Scalability

Wide Operating Temperature Range​

High Efficiency and Powerful Performance

NØRDIS NV6+ series outdoor units feature a full DC inverter system with twin rotary compressors, ensuring high efficiency at both full and partial load conditions. This technology provides stable, quiet, and energy-saving operation, perfectly balancing performance and comfort.

Reliable Operation with Multi-Level Protection

The units are equipped with triple backup operation technology, allowing continuous system performance even if one compressor, fan, or module fails. A comprehensive protection system includes safeguards against overpressure, overcurrent, low voltage, overheating, phase errors, lightning, and electromagnetic interference, ensuring long lasting reliability in demanding environments.

Flexible Installation and System Scalability

With a compact structure and super-long piping design of up to 1100 meters, NØRDIS VRF systems offer exceptional flexibility for complex building layouts. A single system can connect up to 80 indoor units, while the three-direction pipe connection design (front, side, and rear) simplifies installation even in limited spaces.

Wide Operating Temperature Range

NØRDIS VRF systems are designed to perform efficiently across extreme climates – from -30°C to +56°C – providing dependable cooling and heating throughout the year, regardless of seasonal or environmental conditions.

Certified by Eurovent

This certification guarantees that NØRDIS VRF systems deliver true, tested performance, offering confidence to installers, engineers, and end users alike. It also demonstrates that NØRDIS products fully comply with European energy efficiency and environmental standards, Wide Operating Temperature Range NØRDIS VRF systems are designed to perform efficiently across extreme climates – from -30°C to +56°C – providing dependable cooling and heating throughout the year, regardless of seasonal or environmental conditions. ensuring sustainable comfort solutions for modern buildings.

Documents

Here you can download all the most important documents related to this product and its use.

Technical data
pdf

Discover

  •

    Full DC Inverter MINI VRF Units
    12,1 kW
    14,0 kW
    15,5 kW
    18,0 kW
    22,4 kW
    25,2 kW
    28,0 kW
    Model: NV6-120F1/R1-ODU
    Hladilna moč 12.1 kW
    Ogrevalna moč 12.1 kW
    Raven zvočne moči 52/72 dB(A)
    Neto dimenzije (Š×G×V) 1010x410x850 mm
    Model: NV6-140F1/R1-ODU
    Hladilna moč 14 kW
    Ogrevalna moč 14 kW
    Raven zvočne moči 53/73 dB(A)
    Neto dimenzije (Š×G×V) 1010x410x850 mm
    Model: NV6-160F1/R1-ODU
    Hladilna moč 15,5 kW
    Ogrevalna moč 16 kW
    Raven zvočne moči 54/74 dB(A)
    Neto dimenzije (Š×G×V) 1010x410x850 mm
    Model: NV6-180F3/R1-ODU
    Hladilna moč 18 kW
    Ogrevalna moč 18 kW
    Raven zvočne moči 55/79 dB(A)
    Neto dimenzije (Š×G×V) 1120×400×1560 mm
    Model: NV6-224F3/R1-ODU
    Hladilna moč 22,4 kW
    Ogrevalna moč 22,4 kW
    Raven zvočne moči 60/79 dB(A)
    Neto dimenzije (Š×G×V) 1120×400×1560 mm
    Model: NV6-252F3/R1-ODU
    Hladilna moč 25,2 kW
    Ogrevalna moč 25,2 kW
    Raven zvočne moči 60/82 dB(A)
    Neto dimenzije (Š×G×V) 1120×400×1560 mm
    Model: NV6-280F3/R1-ODU
    Hladilna moč 28 kW
    Ogrevalna moč 28 kW
    Raven zvočne moči 61/82 dB(A)
    Neto dimenzije (Š×G×V) 1120×400×1560 mm
    Ta izdelek ima več različic. Možnosti lahko izberete na strani izdelka
    Oglejte si izdelek

  • 360° Air Outlet Cassette
    2,8 kW
    3,6 kW
    4,5 kW
    5,6 kW
    5,0 kW
    6,3 kW
    7,1 kW
    8,0 kW
    9,0 kW
    10,0 kW
    11,2 kW
    12,5 kW
    14,0 kW
    16,0 kW
    Model: NV6-28C8/R1-IDU
    Hladilna moč 2,8 kW
    Ogrevalna moč 3,2 kW
    Raven hrupa (H/M/L) 25/27/30 dB(A)
    Neto dimenzije (Š×G×V) 840x245x840 mm
    Model: NV6-36C8/R1-IDU
    Hladilna moč 3,6 kW
    Ogrevalna moč 4 kW
    Raven hrupa (H/M/L) 25/27/30 dB(A)
    Neto dimenzije (Š×G×V) 840x245x840 mm
    Model: NV6-45C8/R1-IDU
    Hladilna moč 4,5 kW
    Ogrevalna moč 5 kW
    Raven hrupa (H/M/L) 26/30/33 dB(A)
    Neto dimenzije (Š×G×V) 840x245x840 mm
    Model: NV6-56C8/R1-IDU
    Hladilna moč 5,6 kW
    Ogrevalna moč 6,3 kW
    Raven hrupa (H/M/L) 27/30/33 dB(A)
    Neto dimenzije (Š×G×V) 840x245x840 mm
    Model: NV6-50C8/R1-IDU
    Hladilna moč 5 kW
    Ogrevalna moč 5,6 kW
    Raven hrupa (H/M/L) 27/30/33 dB(A)
    Neto dimenzije (Š×G×V) 840x245x840 mm
    Model: NV6-63C8/R1-IDU
    Hladilna moč 6,3 kW
    Ogrevalna moč 7,1 kW
    Raven hrupa (H/M/L) 28/31/35 dB(A)
    Neto dimenzije (Š×G×V) 840x245x840 mm
    Model: NV6-71C8/R1-IDU
    Hladilna moč 7,1 kW
    Ogrevalna moč 8 kW
    Raven hrupa (H/M/L) 29/33/37 dB(A)
    Neto dimenzije (Š×G×V) 840x245x840 mm
    Model: NV6-80C8/R1-IDU
    Hladilna moč 8 kW
    Ogrevalna moč 9 kW
    Raven hrupa (H/M/L) 29/34/38 dB(A)
    Neto dimenzije (Š×G×V) 840x245x840 mm
    Model: NV6-90C8/R1-IDU
    Hladilna moč 9 kW
    Ogrevalna moč 10 kW
    Raven hrupa (H/M/L) 29/34/38 dB(A)
    Neto dimenzije (Š×G×V) 840x245x840 mm
    Model: NV6-100C8/R1-IDU
    Hladilna moč 10 kW
    Ogrevalna moč 11,2 kW
    Raven hrupa (H/M/L) 32/35/39 dB(A)
    Neto dimenzije (Š×G×V) 840x290x840 mm
    Model: NV6-112C8/R1-IDU
    Hladilna moč 11,2 kW
    Ogrevalna moč 12,5 kW
    Raven hrupa (H/M/L) 33/36/41 dB(A)
    Neto dimenzije (Š×G×V) 840x290x840 mm
    Model: NV6-125C8/R1-IDU
    Hladilna moč 12,5 kW
    Ogrevalna moč 14 kW
    Raven hrupa (H/M/L) 33/36/41 dB(A)
    Neto dimenzije (Š×G×V) 840x290x840 mm
    Model: NV6-140C8/R1-IDU
    Hladilna moč 14 kW
    Ogrevalna moč 16 kW
    Raven hrupa (H/M/L) 34/38/43 dB(A)
    Neto dimenzije (Š×G×V) 840x290x840 mm
    Model: NV6-160C8/R1-IDU
    Hladilna moč 16 kW
    Ogrevalna moč 18 kW
    Raven hrupa (H/M/L) 37/43/47 dB(A)
    Neto dimenzije (Š×G×V) 840x290x840 mm
    Ta izdelek ima več različic. Možnosti lahko izberete na strani izdelka
    Oglejte si izdelek

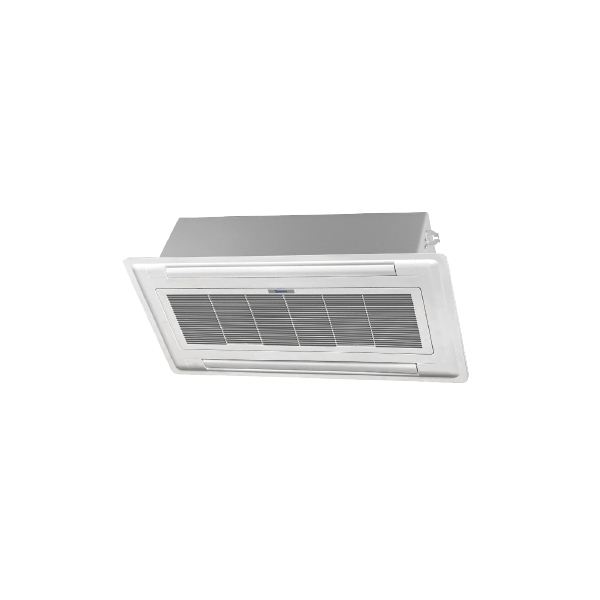

  • Two way cassette
    2,8 kW
    2,2 kW
    3,6 kW
    4,5 kW
    5,0 kW
    5,6 kW
    6,3 kW
    7,1 kW
    Model: NV6-28C2/R1IDU
    Hladilna moč 2,8 kW
    Ogrevalna moč 3,2 kW
    Raven hrupa (H/M/L) 42/36/33 dB(A)
    Neto dimenzije (Š×G×V) 1140×575×290 mm
    Model: NV6-22C2/R1IDU
    Hladilna moč 2,2 kW
    Ogrevalna moč 2,5 kW
    Raven hrupa (H/M/L) 40/35/32 dB(A)
    Neto dimenzije (Š×G×V) 1140×575×290 mm
    Model: NV6-36C2/R1IDU
    Hladilna moč 3,6 kW
    Ogrevalna moč 4 kW
    Raven hrupa (H/M/L) 43/38/35 dB(A)
    Neto dimenzije (Š×G×V) 1140×575×290 mm
    Model: NV6-45C2/R1IDU
    Hladilna moč 4,5 kW
    Ogrevalna moč 5 kW
    Raven hrupa (H/M/L) 43/38/35 dB(A)
    Neto dimenzije (Š×G×V) 1140×575×290 mm
    Model: NV6-50C2/R1IDU
    Hladilna moč 5 kW
    Ogrevalna moč 5,6 kW
    Raven hrupa (H/M/L) 43/38/35 dB(A)
    Neto dimenzije (Š×G×V) 1140×575×290 mm
    Model: NV6-56C2/R1IDU
    Hladilna moč 5,6 kW
    Ogrevalna moč 6,3 kW
    Raven hrupa (H/M/L) 43/38/35 dB(A)
    Neto dimenzije (Š×G×V) 1140×575×290 mm
    Model: NV6-63C2/R1IDU
    Hladilna moč 6,3 kW
    Ogrevalna moč 7,1 kW
    Raven hrupa (H/M/L) 46/39/36 dB(A)
    Neto dimenzije (Š×G×V) 1140×575×290 mm
    Model: NV6-71C2/R1IDU
    Hladilna moč 7,1 kW
    Ogrevalna moč 8 kW
    Raven hrupa (H/M/L) 46/39/36 dB(A)
    Neto dimenzije (Š×G×V) 1140×575×290 mm
    Ta izdelek ima več različic. Možnosti lahko izberete na strani izdelka
    Oglejte si izdelek

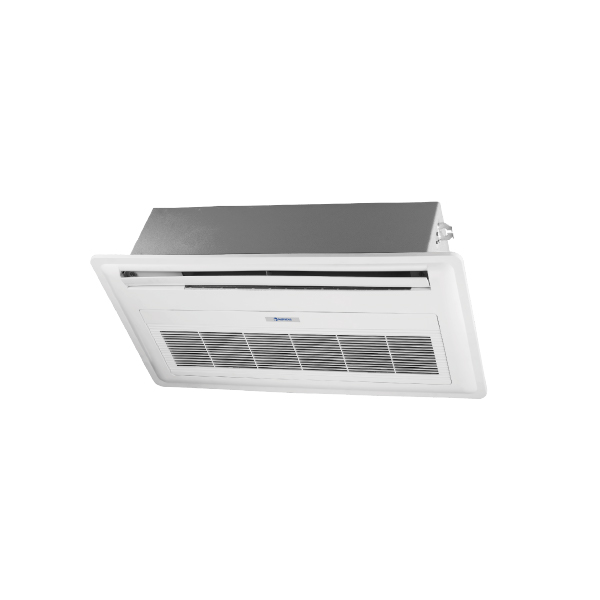

  • One way cassette
    1,8 kW
    2,2 kW
    2,8 kW
    3,6 kW
    4,5 kW
    5,0 kW
    5,6 kW
    Model: NV6-18C1/R1-IDU
    Hladilna moč 1,8 kW
    Ogrevalna moč 2,2 kW
    Raven hrupa (H/M/L) 39/34/31 dB(A)
    Neto dimenzije (Š×G×V) 850×480×235 mm
    Model: NV6-22C1/R1-IDU
    Hladilna moč 2,2 kW
    Ogrevalna moč 2,5 kW
    Raven hrupa (H/M/L) 39/34/31 dB(A)
    Neto dimenzije (Š×G×V) 850×480×235 mm
    Model: NV6-28C1/R1-IDU
    Hladilna moč 2,8 kW
    Ogrevalna moč 3,2 kW
    Raven hrupa (H/M/L) 39/34/31 dB(A)
    Neto dimenzije (Š×G×V) 850×480×235 mm
    Model: NV6-36C1/R1-IDU
    Hladilna moč 3,6 kW
    Ogrevalna moč 4 kW
    Raven hrupa (H/M/L) 40/34/31 dB(A)
    Neto dimenzije (Š×G×V) 850×480×235 mm
    Model: NV6-45C1/R1-IDU
    Hladilna moč 4,5 kW
    Ogrevalna moč 5 kW
    Raven hrupa (H/M/L) 42/36/33 dB(A)
    Neto dimenzije (Š×G×V) 850×480×235 mm
    Model: NV6-50C1/R1-IDU
    Hladilna moč 5 kW
    Ogrevalna moč 5,6 kW
    Raven hrupa (H/M/L) 42/36/33 dB(A)
    Neto dimenzije (Š×G×V) 850×480×235 mm
    Model: NV6-56C1/R1-IDU
    Hladilna moč 5,6 kW
    Ogrevalna moč 6,3 kW
    Raven hrupa (H/M/L) 42/36/33 dB(A)
    Neto dimenzije (Š×G×V) 850×480×235 mm
    Ta izdelek ima več različic. Možnosti lahko izberete na strani izdelka
    Oglejte si izdelek
